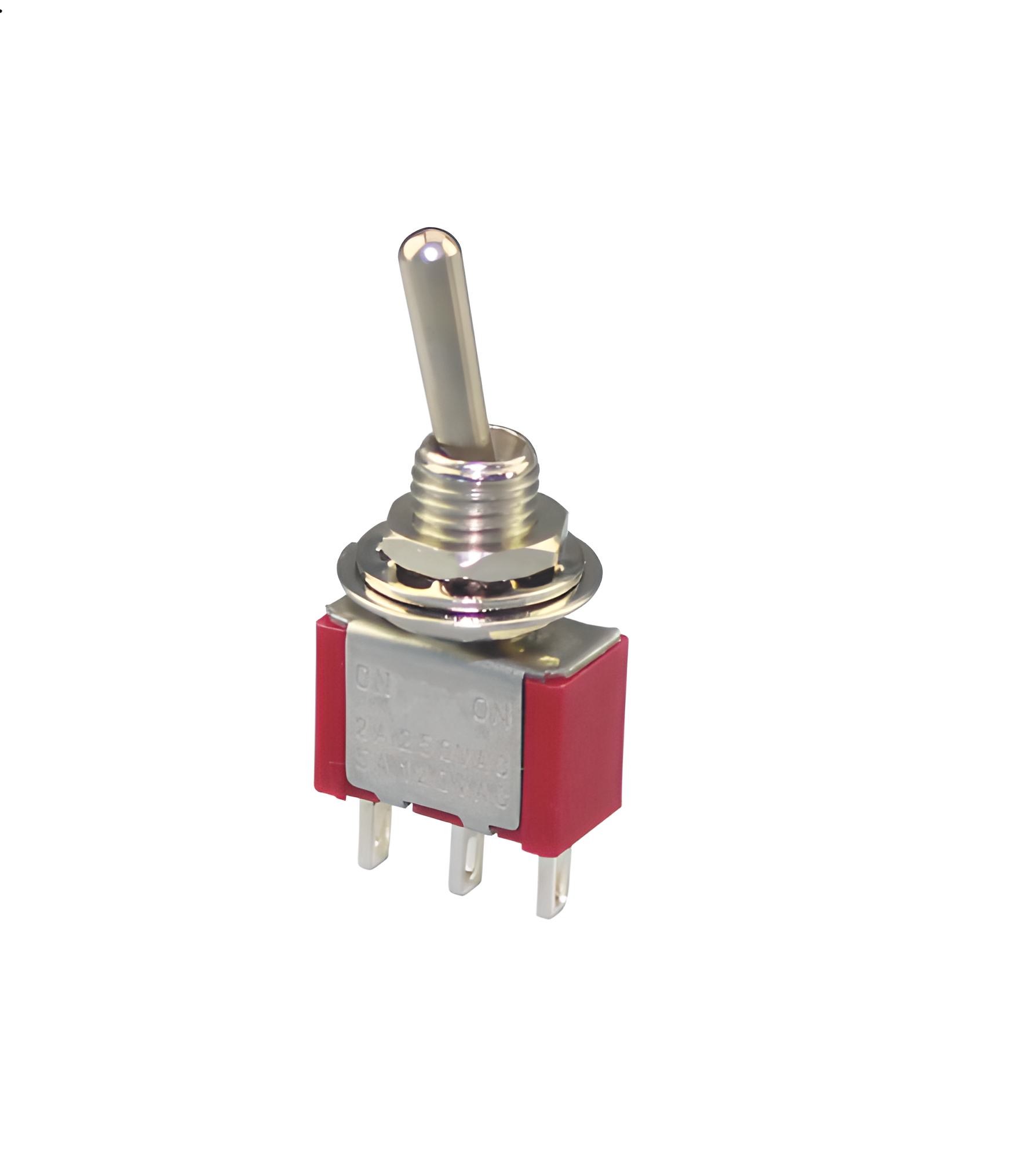

3-Pin Toggle Switch
A 3-pin toggle switch is a type of electrical switch that is commonly used in electronic circuits and electrical systems to control the flow of electrical current. It features three electrical terminals or pins and is operated by flipping a lever or toggle.
Non-returnable
SKU - R0616
Rs.15.00
In stock:
91
Choose Quantity:
Share:
Product Details
Key Features:-
Number of Pins: A 3-pin toggle switch has three electrical terminals or pins. These pins are typically labeled as follows:
- One pin is the "Common" terminal (often labeled as "COM" or "C").
- The other two pins are the "Normally Open" (NO) and "Normally Closed" (NC) terminals (often labeled as "NO" and "NC," respectively).
SPDT Configuration: The 3-pin toggle switch is typically configured as SPDT, which stands for Single Pole, Double Throw. This means it has a single set of contacts (pole) that can be in one of two positions: ON (closed) or OFF (open). The switch can toggle between connecting the common terminal to either the NO or NC terminal.
Toggle Lever: The switch is operated by flipping a lever or toggle, which physically changes the position of the contacts, allowing the switch to change the circuit configuration from ON to OFF or vice versa.
