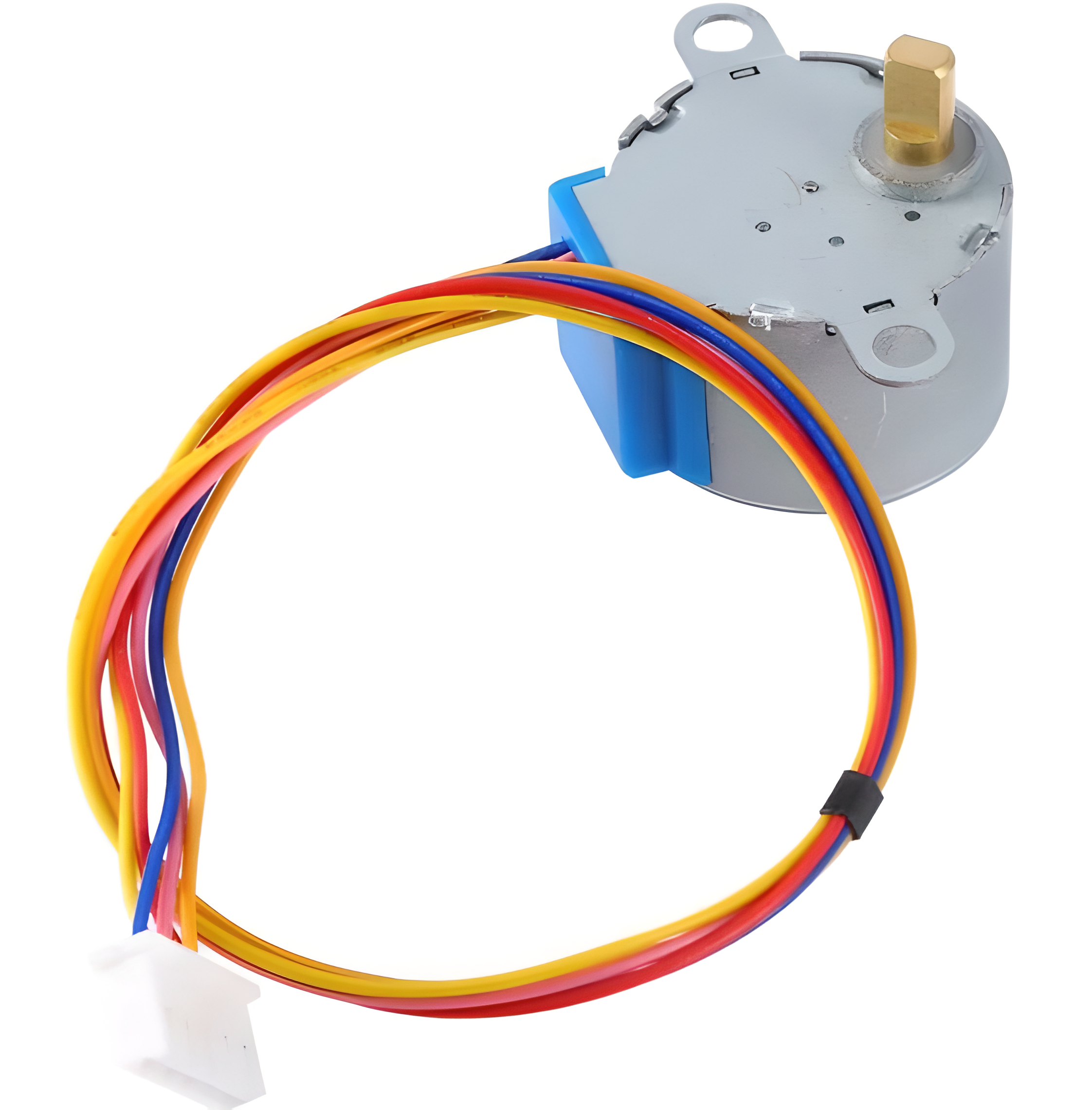

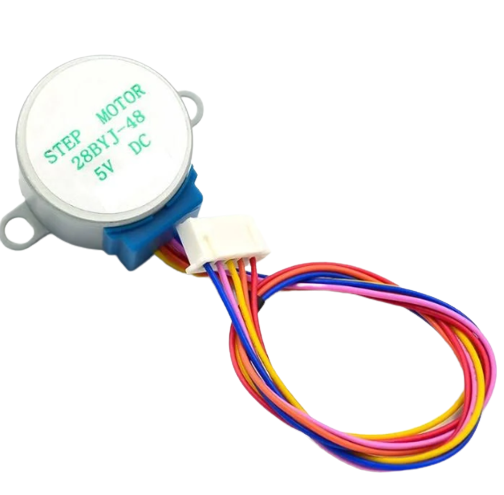

Stepper Motor 5v-28BYJ-48 Mini
The 28BYJ-48 mini stepper motor is a type of electric motor that moves in discrete steps, making it ideal for applications requiring precise positioning or rotation It's operating voltage is 5V
Non-returnable
SKU - R0600
Rs.110.00
In stock:
8
Choose Quantity:
Share:
Product Details
Specifications:
| Voltage | 5V DC |
| Step Angle | 5.625° /64 |
| Frequency | 100Hz |
| Self-positioning Torque | >34.3mN.m |
| Friction torque | 600-1200 gf.cm |
| Number of Phase | 4 |
| Speed Variation Ratio | 1/64 |
| Pull in torque | 300 gf.cm |
| Insulated Power | 600 VAC/1mA/1s |
| Frequency | 100 Hz |
